Overview

Specifications
  • Access Mode: PIN, Fingerprint, Override Key

  • Max User Memory: 1 Master User (PIN), 100 Fingerprints /User PIN

  • Power: DC 6V (AA Alkaline batteries) x 8

  • Battery Life: Approximately 10 months (Average 10 times per day)

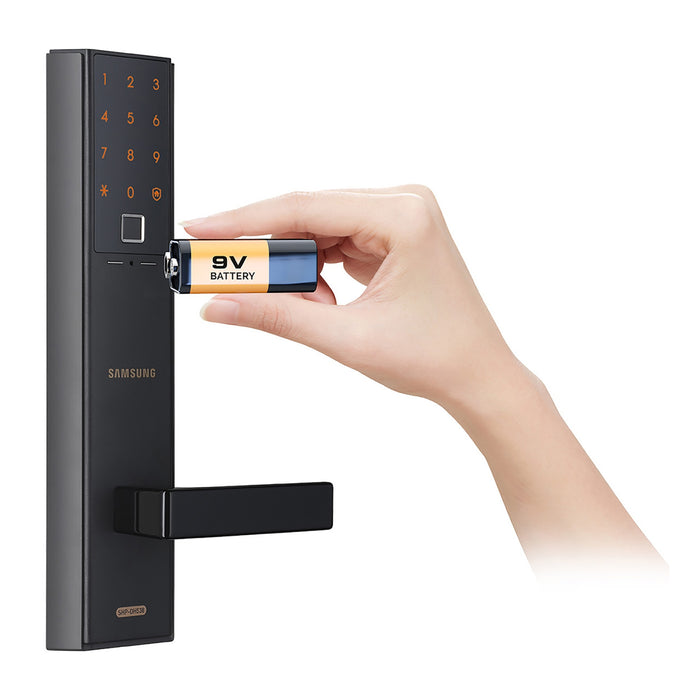

  • Emergency Power Source: 9V Battery (6LF22) (Separately sold)

  • Weight: 2.7 kg (including both inner and outer bodies)

  • Product Dimensions:

            Outer Body : 81.9(W) x 320(H) x 66.8(D)mm
            Inner Body : 79(W) × 290(H) × 80.3(D)mm

  • Applicable Door Thickness: 38-60mm

  • Clearance From Door Edge: 120mm

  • Usage: Sheltered Entrance Only

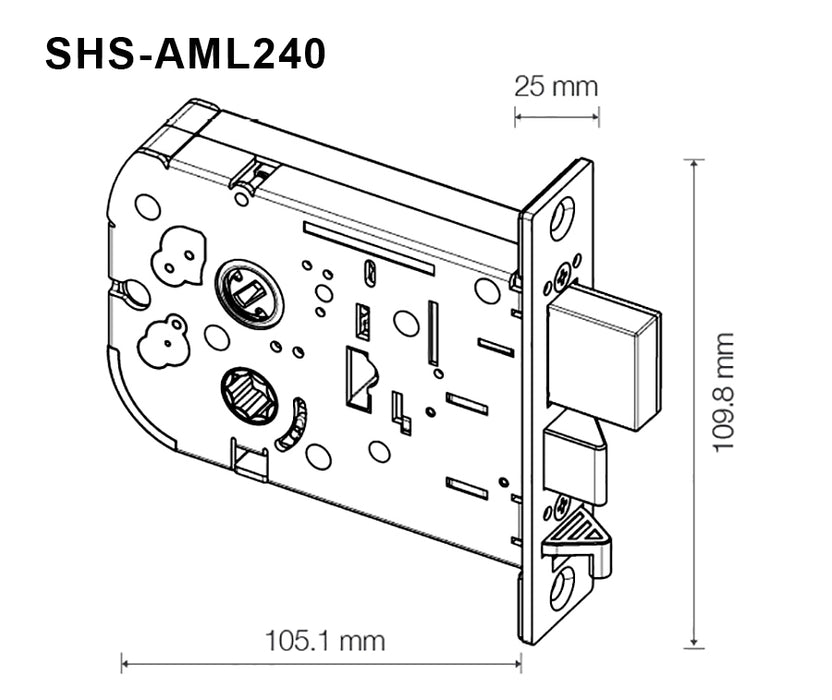

  • Mortise: AML-240 small mortise



Warranty

2 Year Warranty from date of purchased backed by Samsung official distributor

App related support are actioned by Samsung official distributor
