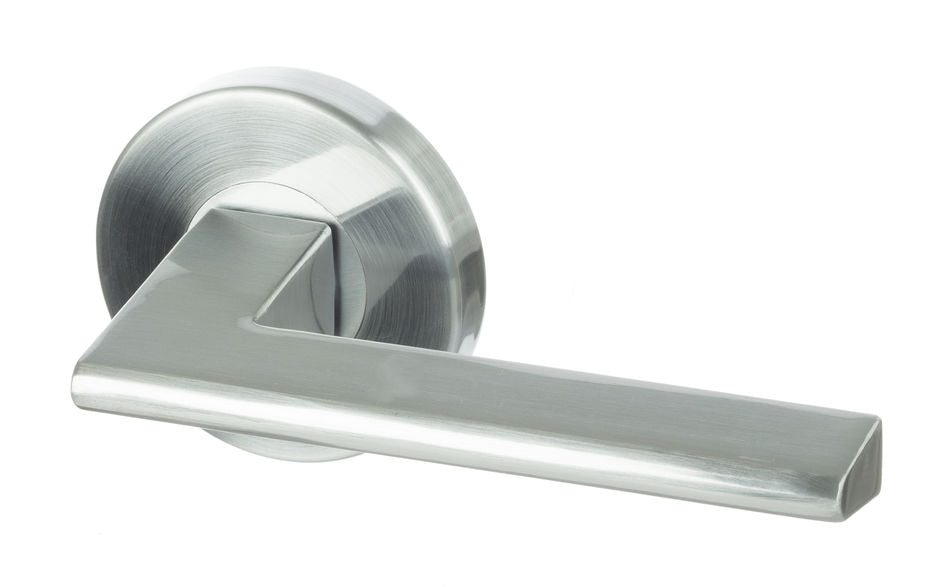

Miles Nelson S Range Shiloh Lever Set Satin Chrome

The S Range lever handles feature a unique through door interlocking system that greatly improves torsional rigidity and ease of installation. Top and bottom grip points significantly reduce the risk of racking or lateral movement which can cause door damage and decreased product life. Positioning lugs inside the covers increase installation accuracy and stop potential twisting of the cover.

• Passage set - For general interior or hallway doors (non-locking operation)
• Privacy set - For bedroom or bathroom doors (internal locking, emergency access from outside)
• Dummy single lever - For wardrobe and cupboard doors (fixed lever). surface mount fixed.

All fixings are concealed and supplied.

Pressure zinc die cast, manufactured to grade 3 standard.

Australian Registered Design No. 201714881

Dimensions:

• To Fit Hole: 54mm
• Round Rose: 65mm
• Suits Door Thickness: 32mm-45mm
• Adjustable Backset Tubular Latch - 60mm/70mm

Handing: Non-handed.

Finish: Satin Chrome

These products are warranted to be free from mechanical and workmanship defects for 10 years from the original date of purchase. If a mechanical defect occurs simply return the product together with proof of purchase to point of purchase for replacement.

This warranty does not cover the finish, defects or damage arising from improper installation, incorrect product application, improper maintenance, storage, shipping, handling or normal wear and tear or products used in commercial applications as “Commercial” is defined as any application other than those found on private residences.
